Babbitt Centrifugal Casting Machines
The GML machines are used by leading companies world-wide for the lining of all types of bearings including; rolling mill, power generation and tanker stern tubes.
These machines are specifically designed to safely and economically cast white metal (Babbitt) into ferrous and non-ferrous housings in the form of bushes, bearings, half shells and shaped shells.
White metal lining bearing shells by the centrifugal method, increases profit potential considerably, at the same time producing high quality surface bonding. Through-put in your plant could be considerably increased with failure risk virtually eliminated.
Main Features of Babbitt Centrifugal Casting Machines:

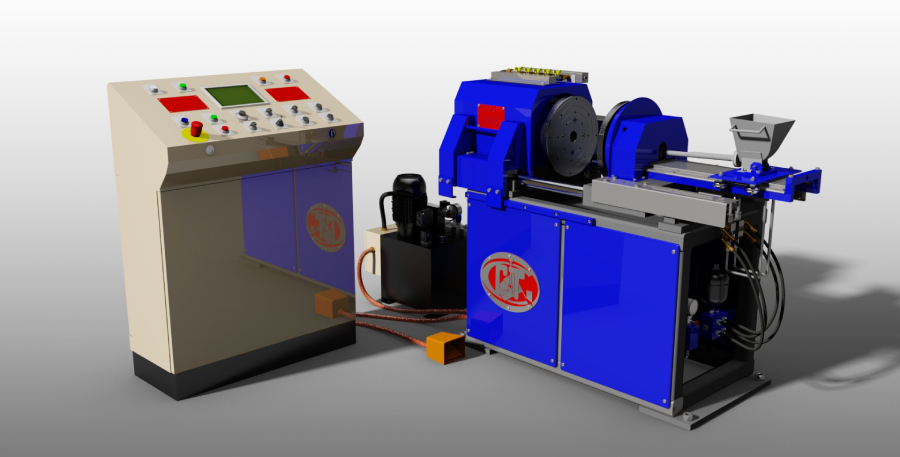

GML Mini
- Eight Models available to suit all sizes of bearing.
- Dual clamping system for added safety.
- Programmable lining cycles can be provided to suit customers requirements.

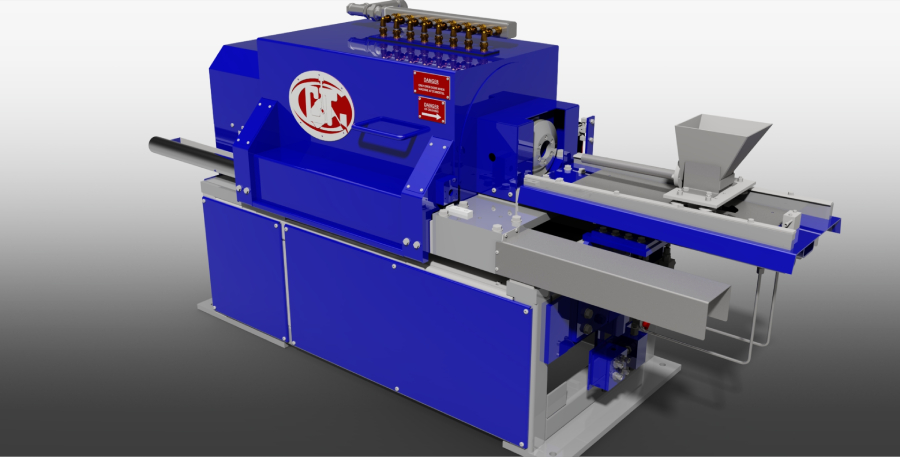

GML 0 Machine

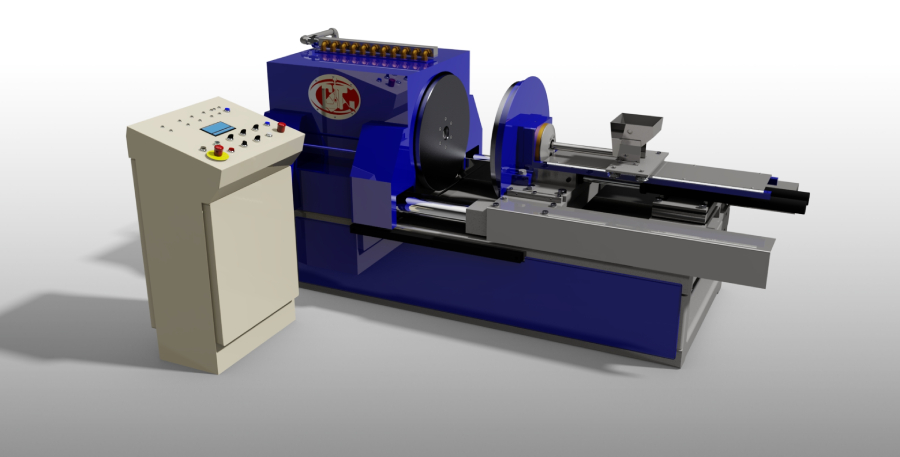

GML 1 Machine

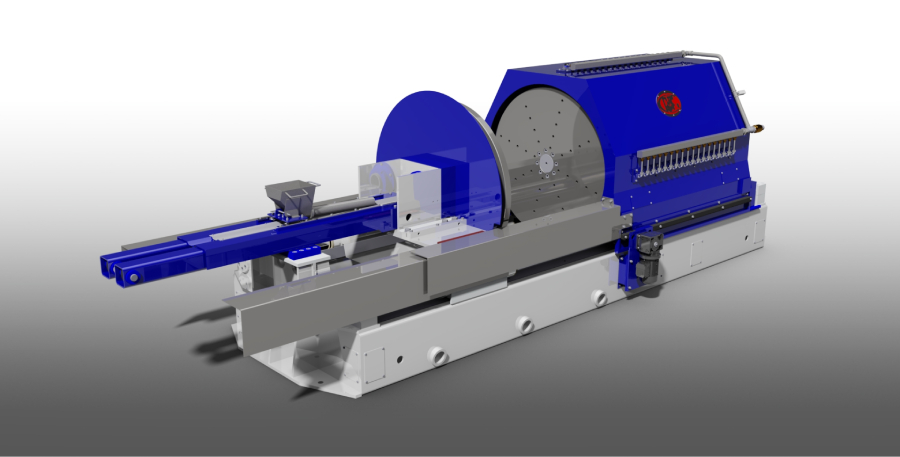

GML 2.5 Machine
General Metal Liner Machines
Suitable for the production of bearings for the following industries:
- Power Generation
- Steel works
- Chemical Plants
- Mining
- Nuclear Plants
- Marine
- Cement
These include bearings for; Generators, Turbines, Steel Mills, Paper Mills, Pumps, Engines, Crushers, Motors, Stern Tubes, Bore Mills, Fans and Seal Rings for a variety of applications.
| MODEL Ref. | FACE PLATE | SHELL LENGTH Max. | K.W. |
|---|---|---|---|
| GML Mini | 0 250 mm | 250 mm | 2.2 |
| GML 0 | 0 430 mm | 200 mm | 4.0/5.5 |
| GML 1 | 0 600 mm | 600 mm | 5.5 |
| GML 1.5 | 0 650 mm | 1000 mm | 7.5/11 |
| GML 2 | 0 910 mm | 900 mm | 15/22 |
| GML 2.5 | 0 1220 mm | 1350 mm | 22 |
| GML 3 | 0 1700 mm | 2000 mm | 30/45 |
| GML 3.5 | 0 2050 mm | 2000 mm | 45 |
